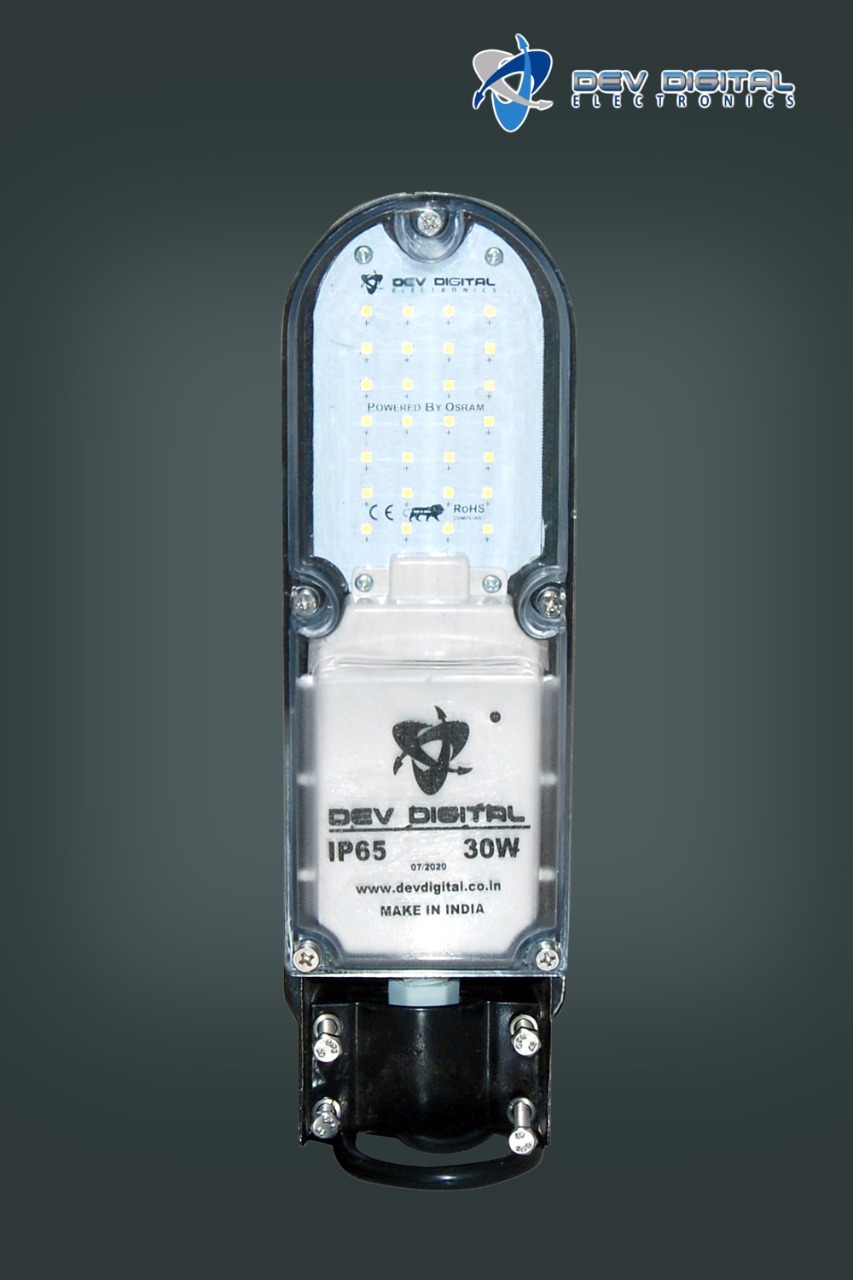

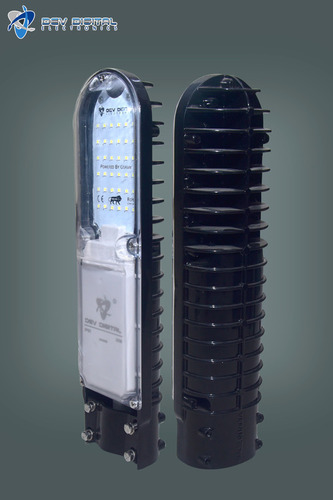

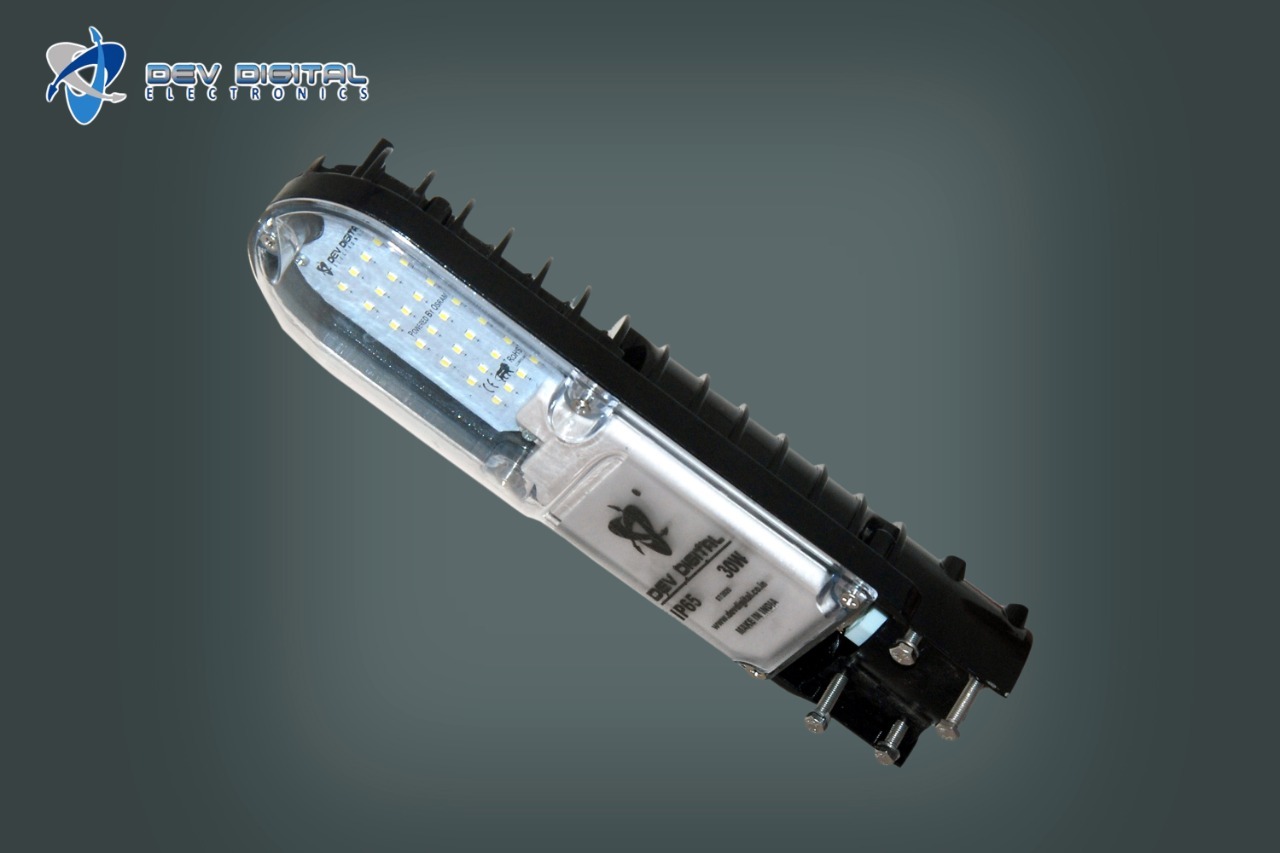

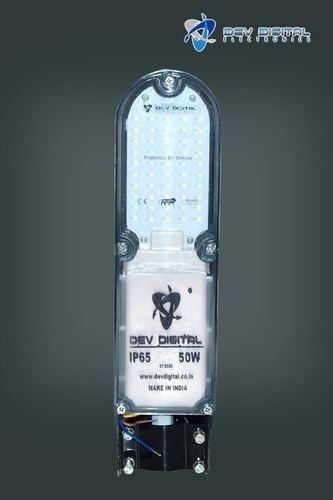

Your search for one of the well-known Capsule Led Street Light Manufacturers in Gandhinagar, Gujarat will meet at Devdigital Electronics Private Limited. Our rich industry knowledge, expertise and support of the technical team have helped us serve premium quality products to the clients. Whether you want LED Street Light or any other offered LED products, we ensure you of their quality, as we test it on different parameters.
|
Technical Specification |
|
|
Housing |
Die cast aluminum with powder coated |
|
Finish |
Gray / Blue / Black |
|
Light Source |
Osram / Seoul,LM-80 approved LED |
|
Rated Lumens |
140 Lm/W |
|
Control Gear |
IP 66, 440V,OVP,UVP,BIS Approved |
|
CRI |
>70 |
|
Surge Protection |
4 to 6 KV Inbuilt |
|
Power Factor |
>0.95 |
|
System Efficacy(LM/W) |
110 |
|
Input Voltage |
85-285 V AC |
|
Colour |
White |
|
Light Design |
LED’s With Lens for Uniform Distribution |
|
LED Light Span |
50000 Hour |
|
LED Beam Angle |
120 / 90 / 60 / 30 / 15 Degree |
|
Electrical Efficiency |
>90% |
|
Optical Efficiency |
>93% |
|
Thermal Efficiency |
>90% |
|
Item Code |
SLC-24W |
SLC-30W |
SLC-36W |
SLC-50W |
SLC-72W |
SLC-100W |
|
Wattage |
24W |
30W |
36W |
50W |
72W |
100W |
PHASE TO PHASE PROTECTION
OVER VOLTAGE>300V UNDER VOLTAGE<80V
CUT OFF>80°C
